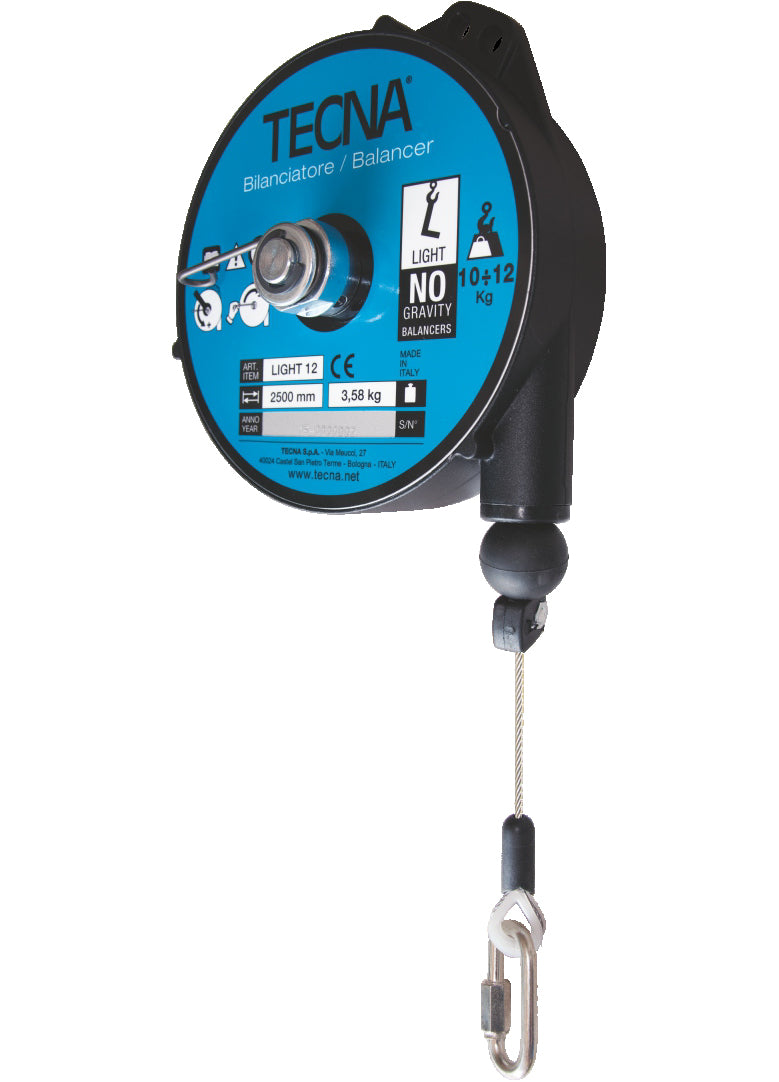

TECNA LIGHT.12 Tool Balancer 10–12 kg, 2500 mm Stainless Steel Cable

TECNA LIGHT.12 tool balancer is a spring-operated balancer designed for suspending and balancing tools and equipment weighing 10–12 kg. Its 2500 mm cable provides an extended working range for professional assembly, production and manufacturing workstations.

The LIGHT.12 features a compact aluminium alloy housing with high resistance to accidental impacts. The unit itself weighs 3.58 kg.

The balancer is equipped with a stainless steel cable with an adjustable working range. The cable is coated with an abrasion-resistant material to help protect it against friction and wear during regular operation.

Integrated spring breakage protection is provided for sudden jerking with loads above 3 kg. The suspension eyelet has a polyamide finish designed to reduce rubbing and wear caused by the suspension hook.

Technical Specifications

• Manufacturer: TECNA
• Model: LIGHT.12
• Product type: tool balancer
• Load capacity: 10–12 kg
• Cable length: 2500 mm
• Unit weight: 3.58 kg
• Housing material: aluminium alloy
• Cable material: stainless steel
• Cable working range: adjustable
• Cable coating: abrasion-resistant
• Spring breakage protection: for sudden jerking above 3 kg
• Suspension eyelet: polyamide finish

Key Features

• Designed for balancing 10–12 kg tools
• Long 2500 mm cable
• Adjustable cable working range
• Compact aluminium alloy housing
• High resistance to accidental impacts
• Stainless steel cable
• Abrasion-resistant cable coating
• Spring breakage protection
• Polyamide eyelet finish helps reduce hook abrasion

Applications & Usage

TECNA LIGHT.12 balancer is suitable for suspending 10–12 kg tools and equipment at workstations where tools are used repeatedly and need to remain within the operator's working area.

Typical applications include industrial assembly lines, production and assembly workstations, workshops, maintenance and repair environments. The adjustable working range allows the movement of the 2500 mm cable to be adapted to the workstation and working process.

Advantages

• Suitable for balancing 10–12 kg tools and equipment
• 2500 mm cable provides an extended working range
• Adjustable working range allows workstation-specific setup
• Aluminium alloy housing withstands accidental impacts
• Stainless steel cable
• Abrasion-resistant coating helps reduce cable wear
• Spring breakage protection
• Polyamide finish helps reduce wear between the hook and suspension eyelet

Applications / Industries

• Industrial assembly
• Production lines
• Assembly workstations
• Workshops
• Maintenance and repair
• Professional suspended tools
