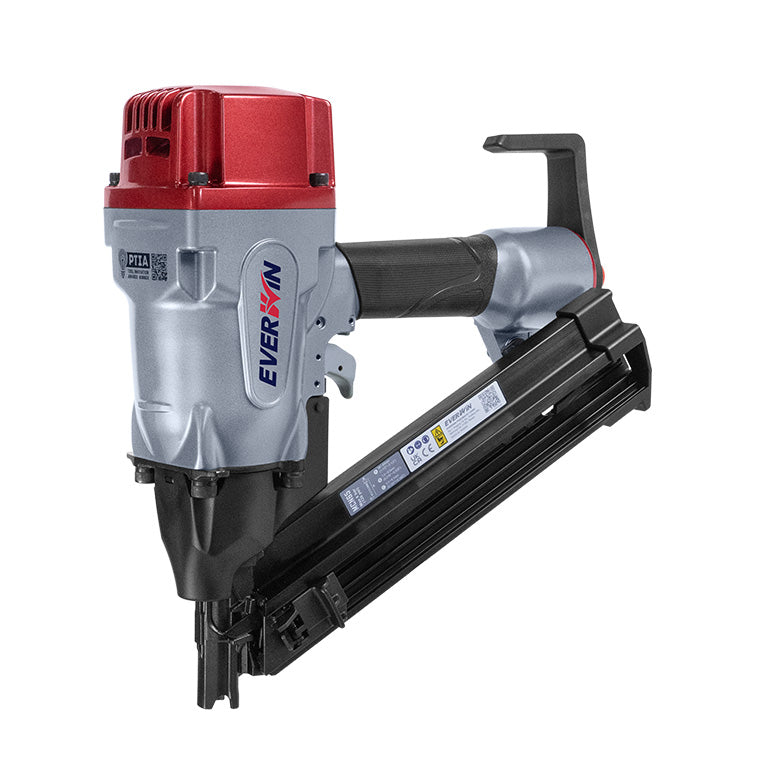

Everwin MCN65 Construction 65 mm pneumatic joist hanger nailer

Everwin MCN65 Construction 65 mm is a professional pneumatic metal connector nailer designed for fastening joist hangers and other structural metal connectors. With a driving power of 675 in-lbs and a tool weight of only 2.55 kg, the MCN65 combines high driving power with low weight for demanding construction and timber framing applications.

The MCN65 metal connector nailer operates at 5–8 bar (70–120 psi) and consumes 1.7 L/sec (3.6 cfm) at 90 psi. Tool dimensions are 315 × 135.5 × 312 mm (L × W × H).

The nailer accepts 34° paper-collated and plastic-collated nails with lengths from 38–65 mm (1-1/2"–2-9/16"). Compatible nail head diameter is 7.0–8.5 mm, while nail shank diameter is 3.3–4.1 mm. Magazine loading capacity is 35 nails.

An exposed nail tip provides clear positioning for fast and precise placement of nails into metal connector holes, including 1-1/2" and 2-1/2" nails. The integrated check pawl is designed to help prevent jams, while the low nail lockout prevents dry firing when the magazine is nearly empty.

A lightweight aluminium magazine supports good tool balance and manoeuvrability. The rotatable rafter hook provides a practical way to hang the tool while moving between joists and working positions.

Key Features

• Professional 65 mm metal connector nailer
• Driving power: 675 in-lbs
• Operating pressure: 5–8 bar
• Nail length: 38–65 mm
• 34° paper or plastic collated nails
• Nail head diameter: 7.0–8.5 mm
• Nail shank diameter: 3.3–4.1 mm
• Magazine capacity: 35 nails
• Exposed nail tip for precise positioning
• Integrated check pawl designed to prevent jams
• Low nail lockout prevents dry firing
• Lightweight aluminium magazine
• Rotatable rafter hook
• Tool weight: 2.55 kg

Applications & Usage

The Everwin MCN65 pneumatic metal connector nailer is designed for structural timber construction where metal connectors must be fastened accurately through predefined fixing holes. The exposed nail tip makes it suitable for applications requiring precise nail placement.

Typical applications include joist hangers, strapping, hurricane ties, rafter ties, post bases, caps and anchors. Its compact construction and low weight also support work with angled joist hangers, corner connections and stair-related joist hanger installations.

Advantages / Benefits

• Exposed nail tip supports precise placement in metal connector holes
• 675 in-lbs driving power for demanding connector fastening
• Low 2.55 kg tool weight supports manoeuvrability
• Accepts 38–65 mm metal connector nails
• Check pawl helps reduce nail jams
• Low nail lockout prevents dry firing
• Aluminium magazine contributes to balanced handling
• Rotatable rafter hook provides convenient temporary tool storage
• Suitable for a range of structural metal connector applications

Application Industries / Use Cases

• Timber construction
• Structural framing
• Roof construction
• Joist hanger installation
• Rafter connections
• Metal connector installation
• Post and beam construction
• Professional carpentry
• Construction and renovation
