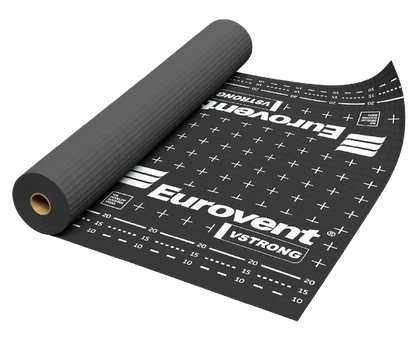

Eurovent VSTRONG 4-Layer Breathable Roof Membrane 200 g/m², 75 m²

Eurovent VSTRONG breathable roof membrane is a four-layer, highly vapour-permeable roofing underlay designed to protect insulated and ventilated pitched roofs against moisture, rain and wind. The membrane is also suitable for low-pitch roof constructions and roofs with full boarding or sarking.

Eurovent VSTRONG roof underlay is reinforced with a polypropylene (PP) mesh, providing exceptional tear resistance and helping prevent damage during installation. Its four-layer construction combines mechanical strength, waterproofness and high vapour permeability.

The membrane has an Sd value of approximately 0.02 m and water vapour permeability of approximately 3000 g/m²/24 h. Due to its high vapour permeability, it can be installed directly on thermal insulation without requiring an additional ventilation gap between the membrane and insulation.

Eurovent VSTRONG is suitable beneath a wide range of roof coverings, including clay and concrete roof tiles, metal roofing, aluminium sheets and natural slate.

The membrane has W1 waterproofness classification and a water column resistance of more than 3000 mm H₂O. Its area weight is approximately 200 g/m², with reaction to fire class E and UV resistance of 3 months.

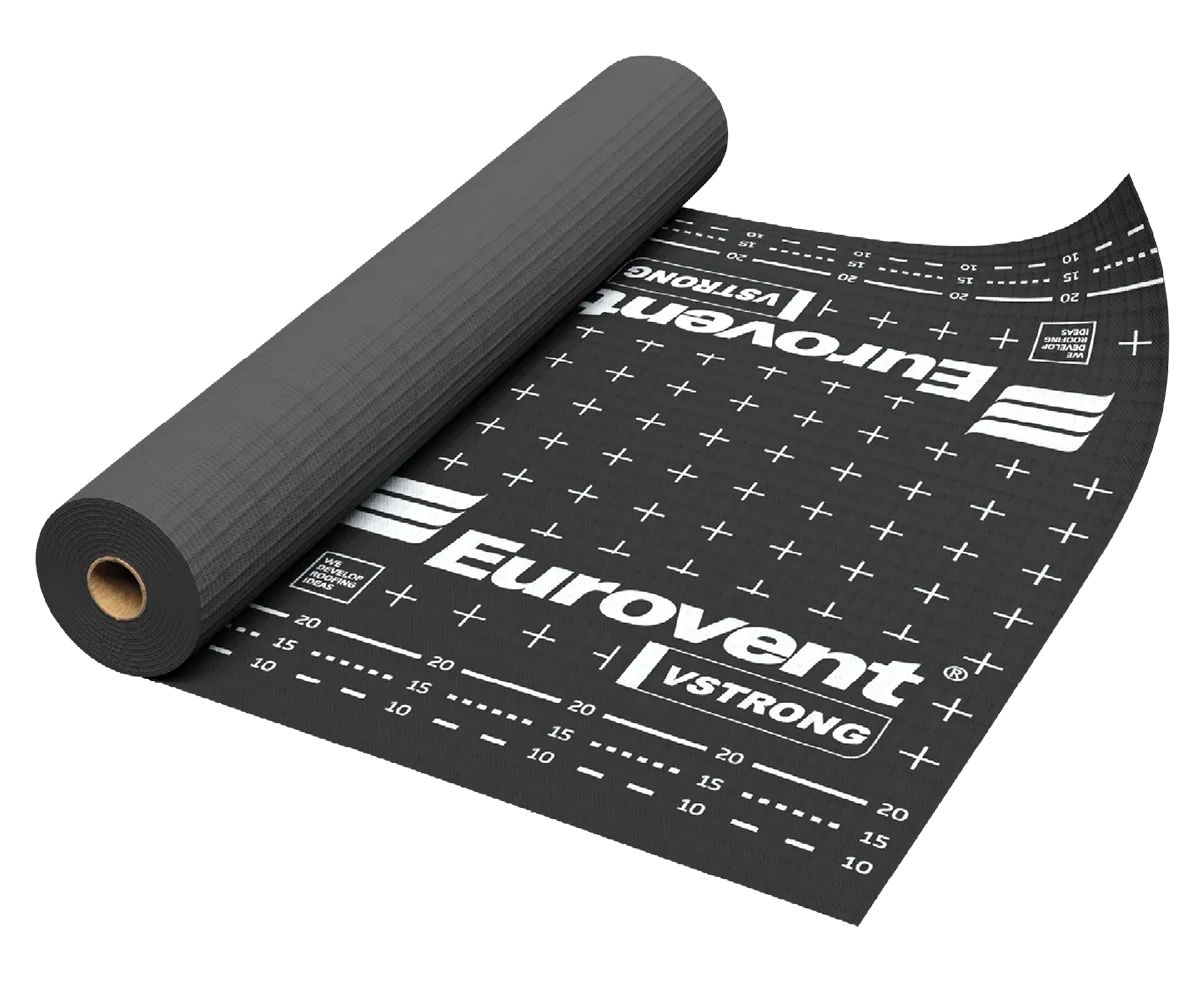

Each roll measures 1.5 × 50 m, providing 75 m² of membrane.

A separate version, Eurovent VSTRONG SYSTEM SK2, is available with two integrated self-adhesive sealing strips.

Technical Specifications

• Brand: Eurovent

• Model: VSTRONG

• Product type: breathable roof membrane

• Construction: 4 layers

• Reinforcement: PP mesh

• Area weight: approx. 200 g/m²

• Sd value: approx. 0.02 m

• Water vapour permeability: approx. 3000 g/m²/24 h

• Waterproofness class: W1

• Water column resistance: more than 3000 mm H₂O

• Reaction to fire class: E

• UV resistance: 3 months

• Roll width: 1.5 m

• Roll length: 50 m

• Roll area: 75 m²

• Installation: directly on thermal insulation or full sarking

• Application: insulated and ventilated pitched roofs

• Suitable for low-pitch roof constructions

Key Features

• Four-layer breathable roof membrane

• PP mesh-reinforced construction

• Exceptional tear resistance

• W1 waterproofness classification

• Water column resistance above 3000 mm H₂O

• Sd value approximately 0.02 m

• High water vapour permeability

• Suitable for low-pitch roofs

• Can be installed directly on mineral wool or glass wool insulation

• Suitable for fully boarded roofs

• UV resistance of 3 months

• Compatible with various roof covering types

Applications & Usage

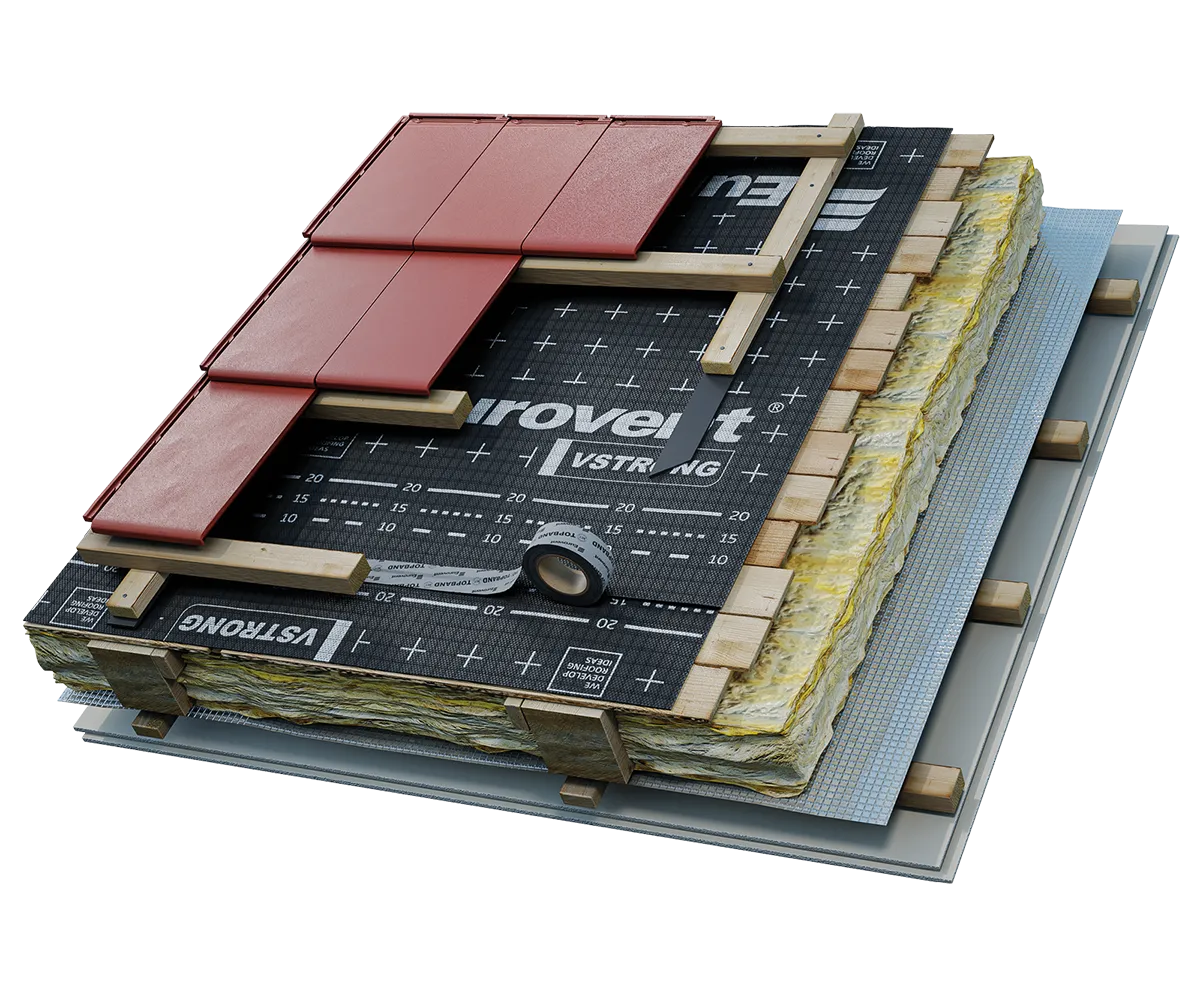

Eurovent VSTRONG roof underlay membrane is used beneath roof coverings on insulated and ventilated pitched roofs. It helps prevent external moisture from entering the roof structure while allowing water vapour within the construction to escape.

Typical applications include:

• Insulated pitched roofs

• Ventilated pitched roofs

• Low-pitch roof constructions

• Fully boarded roofs

• Timber roof structures

• New roof construction

• Roof renovation

The membrane is suitable beneath the following roof coverings:

• Clay roof tiles

• Concrete roof tiles

• Metal roof tiles

• Standing seam metal roofing

• Trapezoidal metal sheets

• Aluminium roofing sheets

• Natural roofing slate

Thanks to its high vapour permeability, Eurovent VSTRONG can be installed directly on mineral wool, glass wool and other suitable thermal insulation materials. No separate ventilation gap is required between the membrane and insulation.

The final roof covering must always be installed using battens and counter-battens. Roof coverings must not be installed directly onto the membrane.

Advantages

• Four-layer construction provides high mechanical durability

• PP mesh reinforcement increases tear resistance

• W1 waterproofness helps protect roof structures against precipitation

• High vapour permeability allows moisture to escape from the construction

• Can be installed directly on thermal insulation

• No additional ventilation gap required between membrane and insulation

• Suitable for low-pitch roof applications

• Compatible with fully boarded roof structures

• Suitable beneath various roofing materials

• UV resistance of 3 months

• 75 m² roll provides coverage for larger roof areas

Applications / Industries

• Roofing

• Pitched roof construction

• Insulated roof assemblies

• Ventilated roof assemblies

• Low-pitch roofs

• Fully boarded roofs

• Timber-frame construction

• Residential and commercial construction

• Roof insulation

• Roof renovation
