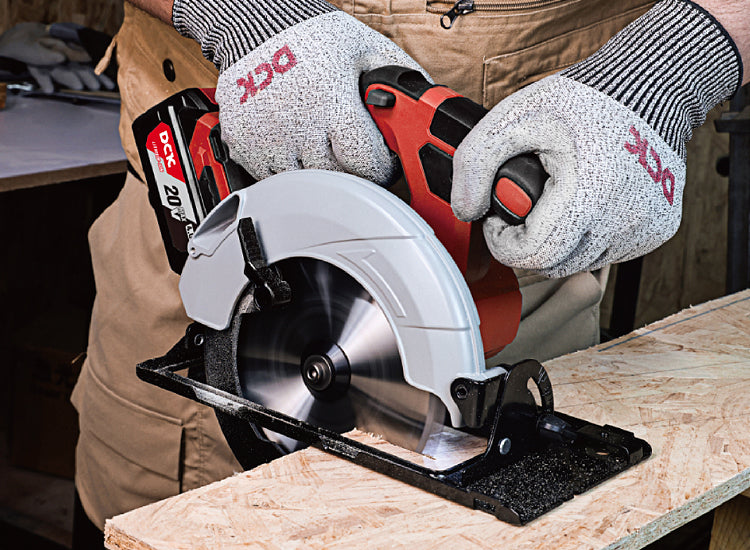

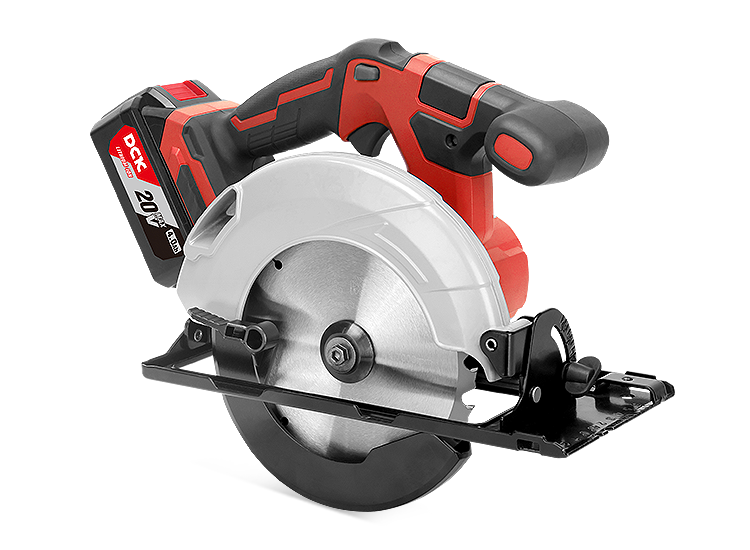

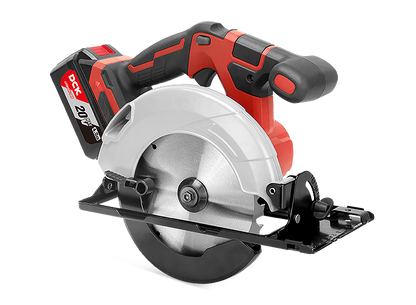

DCK KDMY165SZ 20V MAX Brushless Circular Saw 165 mm, 59 mm, Solo

The DCK KDMY165SZ 20V MAX cordless circular saw is a brushless circular saw designed for accurate straight and bevel cutting in wood. Its 165 mm saw blade, maximum 59 mm cutting depth and adjustable 0–50° bevel angle make it suitable for construction, carpentry, installation and renovation work.

The brushless motor is designed for efficient and durable operation. The saw provides a no-load speed of 5000 rpm. It uses a 165 mm diameter saw blade with a 20 mm blade bore.

Maximum cutting capacity at 0° is 59 mm. At a 45° bevel the maximum cutting depth is 43 mm, while at 50° it is 39 mm. The bevel angle can be adjusted from 0° to 50° for a range of angled cutting applications.

The compact body improves maneuverability, while the rubberized handle provides a secure grip. A large dust outlet helps remove cutting dust from the working area and supports better visibility during cutting.

The integrated dust collection system can be connected to a suitable external vacuum using the supplied adapter. The vacuum adapter has a 33 mm inner diameter and 38.2 mm outer diameter.

Under the manufacturer's stated test conditions, the saw can make up to 100 cuts in 200 × 40 mm pine board using a 4.0Ah battery pack.

The KDMY165SZ is supplied as a Solo tool, without battery or charger. Net weight of the Z version is 3.2 kg.

Technical Specifications

• Model: KDMY165SZ
• Battery platform: 20V MAX
• Kit type: Solo
• Motor: brushless
• No-load speed: 5000 rpm
• Blade diameter: 165 mm
• Blade bore: 20 mm
• Maximum cutting capacity at 0°: 59 mm
• Maximum cutting capacity at 45°: 43 mm
• Maximum cutting capacity at 50°: 39 mm
• Maximum bevel angle: 50°
• Bevel adjustment: 0–50°
• Vacuum adapter inner diameter: 33 mm
• Vacuum adapter outer diameter: 38.2 mm
• Dust collection: integrated dust port with adapter
• Handle: rubberized
• Net weight: 3.2 kg

Key Features

• 20V MAX cordless circular saw
• Brushless motor
• 165 mm saw blade
• Maximum cutting depth of 59 mm
• Adjustable 0–50° bevel angle
• 5000 rpm no-load speed
• Compact body
• Rubberized handle
• Large dust outlet
• External vacuum connection
• Vacuum adapter included

Applications & Usage

The DCK KDMY165SZ cordless circular saw is designed primarily for straight and bevel cutting of wood and wood-based materials when fitted with a suitable saw blade. Its 59 mm maximum cutting depth makes it suitable for cutting boards and other appropriate timber components.

The adjustable 0–50° bevel angle provides flexibility for angled cuts in carpentry, construction and installation applications. The supplied vacuum adapter allows the saw to be connected to a suitable external dust extraction system.

Package Includes

• 1 × DCK KDMY165SZ cordless circular saw
• 1 × saw blade
• 1 × hex wrench
• 1 × fixing flange
• 1 × vacuum adapter
• Color box packaging
• Battery not included
• Charger not included

Advantages

• 59 mm cutting depth at 0°
• Adjustable bevel angle up to 50°
• 43 mm cutting depth at 45°
• Brushless motor
• 5000 rpm no-load speed
• Compact design improves maneuverability
• Rubberized handle supports secure handling
• Integrated dust port helps remove cutting dust
• Adapter included for external dust extraction
• Saw blade included

Applications / Industries

• Construction
• Carpentry
• Woodworking
• Cutting wood-based materials
• Assembly
• Installation
• Interior fitting
• Renovation
• Professional workshops
