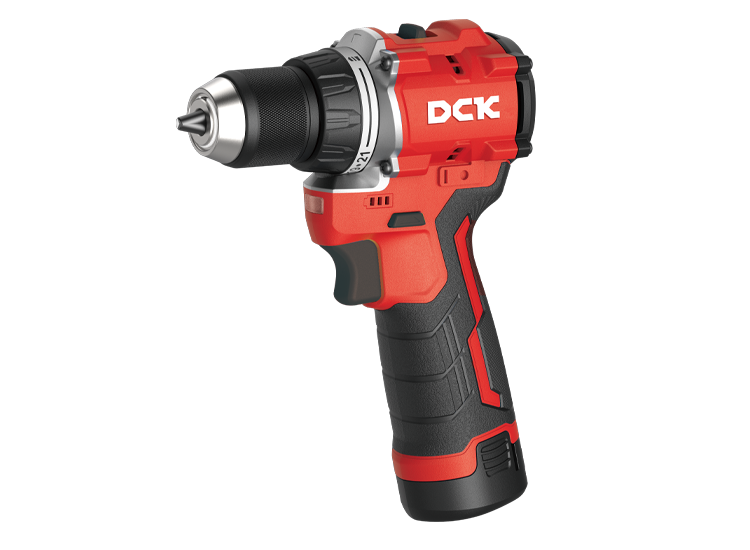

DCK KDJZ1250EK 12V MAX Brushless Drill Driver 50 Nm, 2×2.0Ah

The DCK KDJZ1250EK 12V MAX cordless drill driver is a compact and lightweight brushless drill driver designed for professional and precision drilling and fastening tasks. With a maximum torque of 50 Nm, a two-speed gearbox and 21+1 torque settings, it provides controlled performance for a wide range of materials and applications.

The brushless motor is designed for efficient, powerful and durable operation. The tool body is only 141 mm long, making it well suited for working in narrow or difficult-to-access spaces.

The two-speed gearbox provides a no-load speed of 0–500 rpm in first gear and 0–1800 rpm in second gear. Lower speed is suitable for higher-torque screwdriving, while the higher speed is intended for drilling applications.

The maximum chucking capacity is 10 mm. Maximum specified drilling capacity is 10 mm in steel and 32 mm in wood.

The 21+1 torque settings allow fastening torque to be adjusted according to the material and screw. An integrated LED work light improves visibility in darker work areas, while the ergonomic rubberized handle supports comfortable handling during longer tasks.

The KDJZ1250EK kit includes two 12V MAX 2.0Ah battery packs and a 3A charger, allowing one battery to be used while the other is charged.

Under the manufacturer's stated test conditions, one 2.0Ah battery pack can drive up to 612 ST4.2 × 25 mm wood screws into 40 mm pine board.

Technical Specifications

• Model: KDJZ1250EK
• Battery platform: 12V MAX
• Included batteries: 2 × 2.0Ah
• Charger: 3A
• Motor: brushless
• Maximum torque: 50 Nm
• Torque settings: 21+1
• Maximum chucking capacity: 10 mm
• No-load speed 1st gear: 0–500 rpm
• No-load speed 2nd gear: 0–1800 rpm
• Maximum drilling capacity in steel: 10 mm
• Maximum drilling capacity in wood: 32 mm
• Body length: 141 mm
• Work light: LED
• Net weight: 1.05 kg

Key Features

• 12V MAX cordless drill driver
• Brushless motor
• Maximum torque of 50 Nm
• 21+1 torque settings
• Two-speed gearbox
• Compact 141 mm body
• Maximum no-load speed of 1800 rpm
• 10 mm chuck
• LED work light
• Ergonomic rubberized handle
• Two 2.0Ah batteries included
• 3A charger and plastic case included

Applications & Usage

The DCK KDJZ1250EK cordless drill driver is suitable for driving and removing screws and for drilling in wood and steel. Its compact 141 mm body makes it practical for furniture installation, interior fitting, assembly and other applications where access is limited.

The two speed ranges and 21+1 torque settings allow the tool to be adapted for both controlled fastening and faster drilling.

Package Includes

• 1 × DCK KDJZ1250EK cordless drill driver
• 2 × 12V MAX 2.0Ah battery packs
• 1 × 3A charger
• 1 × belt clip
• 1 × driver bit
• 1 × plastic case

Advantages

• Compact 141 mm body for working in tight spaces
• 50 Nm maximum torque for varied fastening work
• Brushless motor
• 21+1 settings for precise torque control
• Two speed ranges for drilling and fastening
• LED work light improves visibility
• Two 2.0Ah batteries support continuous operation
• 3A charger and plastic case included

Applications / Industries

• Construction
• Furniture installation
• Carpentry
• Woodworking
• Metalworking
• Assembly
• Interior fitting
• Maintenance and repair
• Home repair
